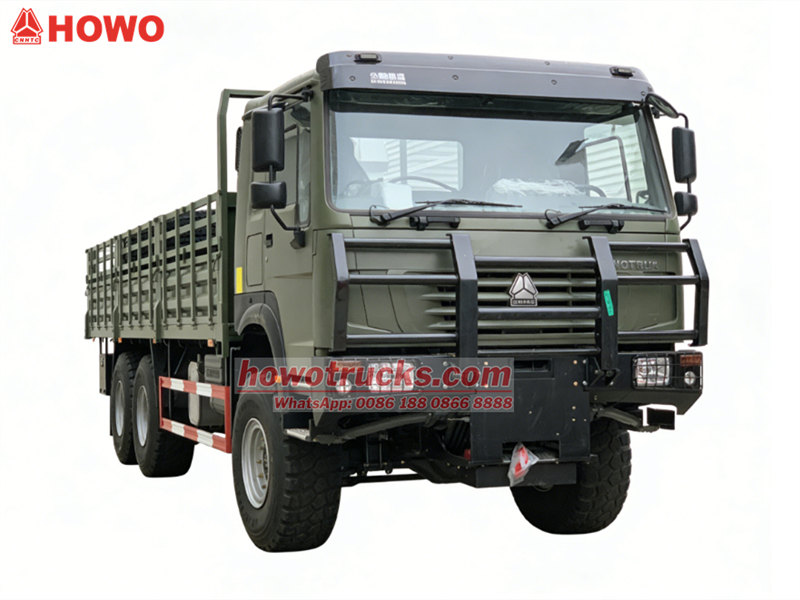

Howo 6X6 drive military troop carrier truck

Howo 6X6 drive military troop carrier truck
Howo 6WD drive military troop carrier truck
Howo 6X6 drive military troop carrier truck
Howo all drive military troop carrier truck
Howo heavy 340HP military troop carrier truck
Howo heavy 20tons military troop carrier truck
Howo 6X6 drive 20tons carrier truck
Howo 340HP military troop carrier truck
Howo 6X6 drive 20tons cargo truck

Howo 6X6 drive military troop carrier truck

The Sinotruk 6x6 all drive cargo truck is a hardcore piece of equipment tailored for extreme off road and heavy-duty transportation scenarios. Its core positioning is "all-terrain, high reliability, and high load capacity," capable of withstanding heavy-load impacts while controlling the vehicle's weight to ensure a balance between transportation efficiency and fuel economy. In terms of the powertrain, the truck is equipped with a Sinotruk WP10.P340E22 inline 6 cylinder engine, delivering up to 340 horsepower and a peak torque of 1490 N·m. Maximum power is available in the low-speed range of 1200-1500 rpm, perfectly suited for core needs such as heavy-load climbing and starting on complex road conditions.

  • Arbetskapacitet :

    20 tons

  • Hytttyp :

    Howo single cabin, with one sleeper

  • Drivsystem :

    6x6

  • Hjulbas (mm) :

    4600+1350

  • Motorspecifik :

    WP10.340E22

  • Växellåda :

    HW19710C, 10 forwards & 2 reverses

  • Front axle ( Kg ) :

    7500

  • Bakaxel (kg) :

    13000*2
Fråga nu
PRODUKTKATEGORIER
Nya produkter

In the global specialized transport and off-road freight sector, the Howo 6WD 20tons cargo truck, with its robust all-terrain capability, reliable heavy-duty performance, and flexible adaptability, has become the preferred equipment for extreme conditions such as mountain exploration, mine resupply, and emergency rescue.



The drive system is its core advantage, employing an STR cast steering drive axle and an ST16 dual-reduction rear axle, coupled with multiple differential locks, to achieve even torque distribution. This completely eliminates slippage on low-traction surfaces such as mud and gravel, giving the vehicle exceptional off-road capability and allowing it to easily traverse obstacles such as ditches and steep slopes.



In the African market, its adaptability and cost-effectiveness have become particularly prominent, making it a vital force in supporting infrastructure construction and material transportation in Africa.

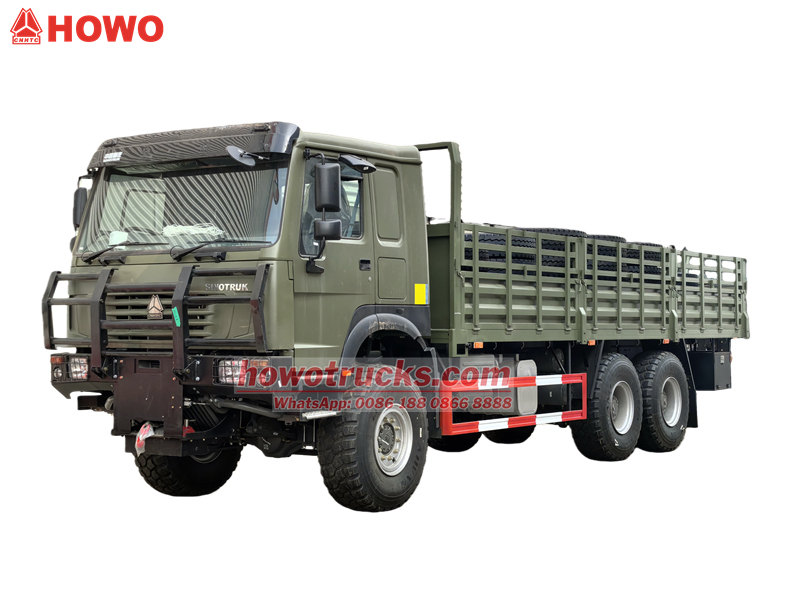

 HOWO 6x6 20tons cargo truck

*Howo Heavy 6x6 Cargo Lorry Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

▶ Truck Chassis: Howo truck chassis, 4x4,6X6 model，WP model with 340HP and emission 9.8L.



▶ Cargo material: 5mm thick high-quality steel for prolonged service lier carbon steel, aluminum alloy or stainless steel can be choose.



▶ Optional design: such as telescopic boom, knuckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs.



Howo 6x6 cargo truck



✦ Ⅱ.Product Parameter For Howo 4WD Truck  « « «




Howo 6x6 CARGO TRUCK SPECIFICATIONS

Truck Model

CSC52530QHC

Truck Brand

Howo

Dimension (LxWxH) (unloaded)mm

10350×2550×3250

Cargo body size(mm)

6800X2400X650

Steel thickness of Carriage(mm)

Floor:4mm/Side:3mm

Approaching angle/ Departure angel (°)

16/15

Overhang (front/rear) (mm)

1530/2107

Wheel base (mm)

4500+1350

Max. Driving speed (km/h)

105

Front axle loading capacity (kg)

7500

Rear axle loading capacity(kg)

13000*2

Curb weight (kg)

9800

Gross vehicle weight

25000

Cab Model

Howo cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.

Engine Model

Model

WP10.340E22

Power

340 hp

Euro Ⅱ emission standard

Brake system



Service brake

Dual circuit compaction air brake

Parking Brake (emergency brake)

Spring energy, compressed

Steering system

Model

HW 10 speed Steering Gear Box ,hydraulic steering with power assistance.

(Left/Right hand driving)

Tire

12.00R20 10 pcs tyre with 1 Spare tire

Electrical system

Electrics Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3 phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.

Oil Tank

Square type 400L Aluminum alloy fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Cargo Box

carbon steel material

Capacity

20tons

Documents

English operation manual, Spare parts list, and all necessary export docs.

Optional equipment

1, Dust bin lifting system (with any option)

2, Rear vision camera

3, Italy imported multi-way valve

4, Optional stainless steel waste water tank



Howo 6x6 20tons cargo truck



✦ Ⅲ.All Drive System Integration Technology « « «



Howo off raod 20tons cargo truck

♦ Howo all drive system utilizes its independently developed "transfer case + multiple differential locks + dedicated drive axle" integrated technology.



♦ The transfer case employs a high-strength casting process, enabling flexible power distribution between the front and rear axles, switching between high-speed two-wheel drive, high-speed four-wheel drive, and low-speed four-wheel drive modes to adapt to different road conditions.



Howo off raod 20tons cargo truck

♦ Multiple differential locks (including a central differential lock, front axle differential lock, and rear axle differential lock) automatically adjust torque distribution based on road surface adhesion, achieving 100% locking functionality and ensuring the vehicle's ability to escape from extreme road conditions such as mud and sand.



♦ The drive axle uses an STR cast steering drive axle and an ST16 dual-reduction rear axle, employing precision machining and heat treatment processes to enhance the axle housing strength and impact resistance.

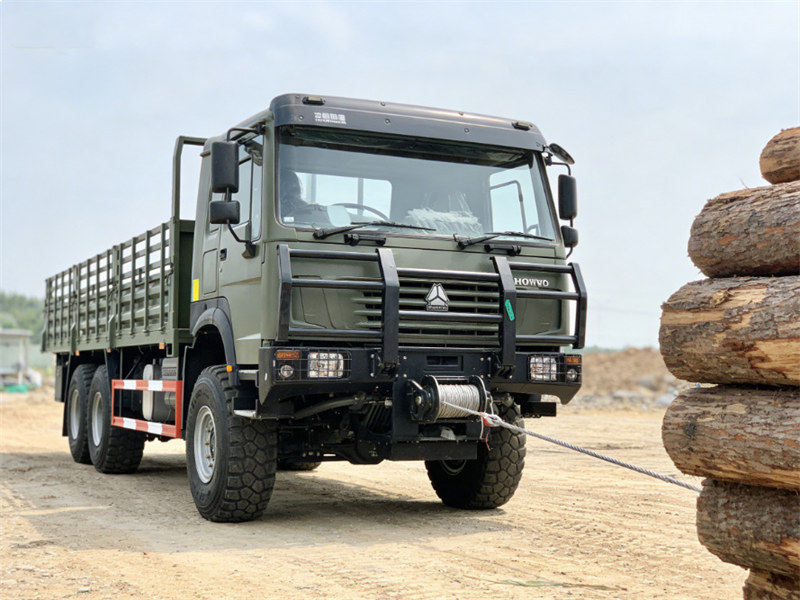

✦ Ⅳ.Front Mounted Electric Winch « « «

♦ Vehicle Self-Rescue: When a truck gets stuck in mud, sand, snow, or ditches, it can be towed out using a winch.



♦ Rescuing Other Vehicles: Can tow lightly loaded disabled vehicles, accident vehicles, and stuck vehicles.



♦ Heavy Load Towing: Tows large equipment, trees, rocks, etc.



Howo 6x6 cargo truck



Front Mounted Electric Winch

Capacity

2 tons

Distance

50 m

Material

Stainless Steel Wire Rope



✦ Ⅴ.Process Standards For Howo All Drvie Cargo Truck « « «

♦ Welding Process: Key structural components such as the chassis and cab are welded using automated robotic welding to ensure 100% compliance with weld strength and appearance quality standards, eliminating incomplete or missed welds.

♦ Painting Process: Adhering to Sinotruk commercial vehicle painting standards, a multi-layered protective coating of electrophoresis + intermediate coat + topcoat is employed. Salt spray testing must meet ≥1000 hours of corrosion resistance requirements, adapting to the needs of humid, hot, and corrosive environments such as those in Africa.



♦ Final Assembly Process: The assembly of key assemblies such as the all-wheel drive system, suspension system, and braking system utilizes specialized tools such as torque wrenches to ensure that bolt torque and assembly clearances meet process requirements.



Howo 6x6 cargo truck



✦ Ⅵ.Application For Howo All Drvie Cargo Truck « « «

The Howo Heavy 6WD cargo trucks, with their all-wheel drive system and high-horsepower engine, can tackle any difficult road surface.

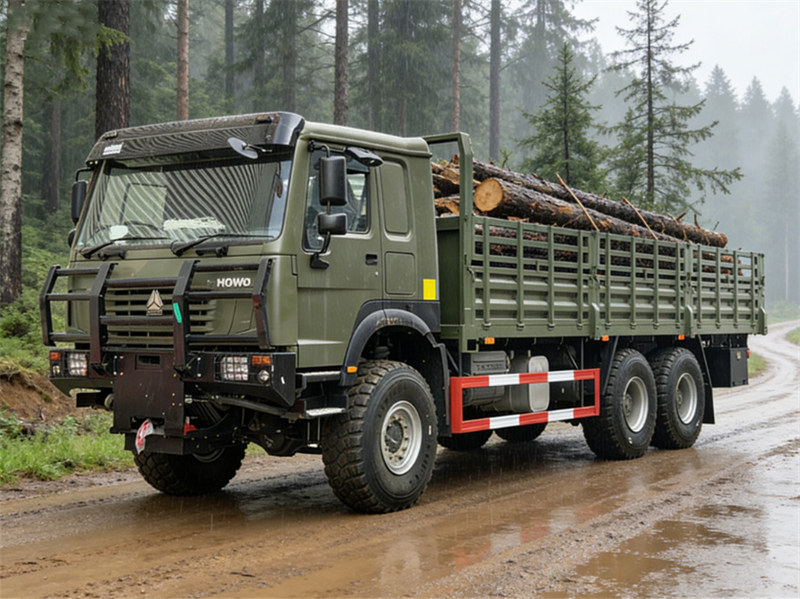

Howo 6x6 cargo truck

( Muddy mountain road ）

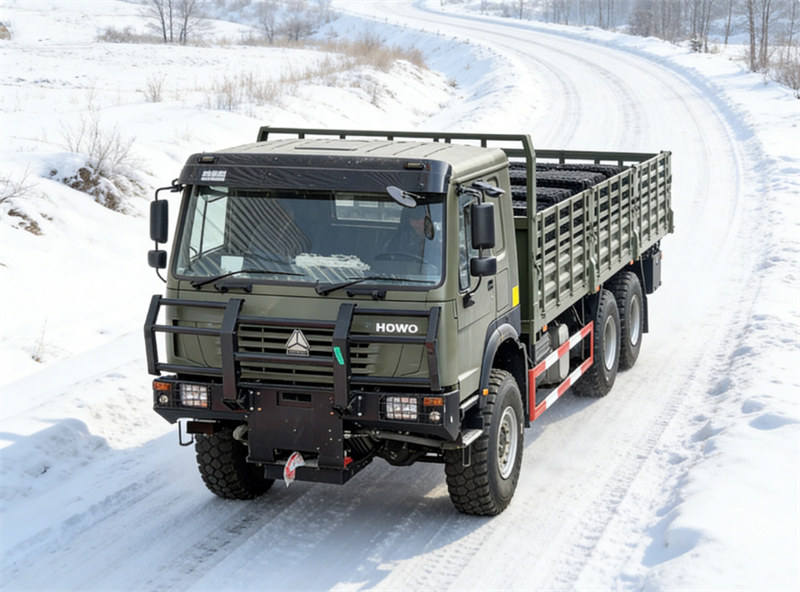

Howo all drive cargo truck

（ Icy and Snowy Ground）





»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

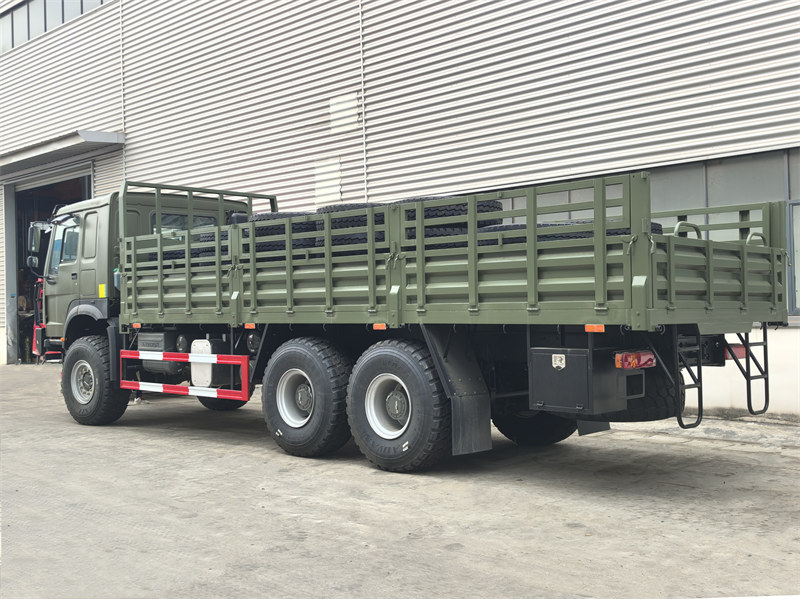

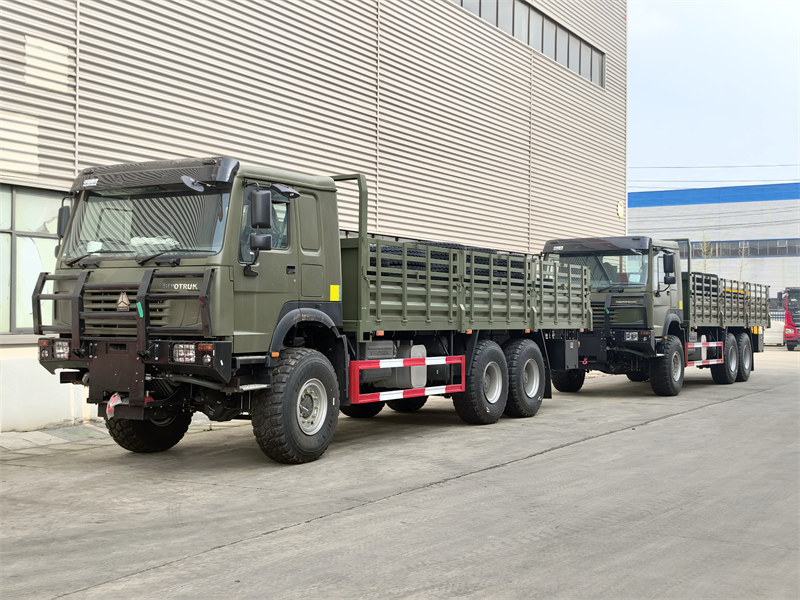

Howo off road 20tons cargo truck



Howo off road 20tons cargo truck
