The HOWO oil tanker truck with double refueling system is a professional urban special refueling tank truck tailored for diversified fuel transportation and mobile refueling scenarios. Powered by a reliable MC07.34-30 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this fuel tanker delivers a maximum power output of 340 HP, bringing robust and stable power performance for daily operation.
Arbetskapacitet :
20000LHytttyp :
HOWO TX single cabin, with one sleeperDrivsystem :
6x4Hjulbas (mm) :
4600+1350Motorspecifik :
MC07.34-30Växellåda :
HW19710C, 10 forwards & 2 reversesFront axle ( Kg ) :
7500Bakaxel (kg) :
13000*2The HOWO oil tanker truck with double refueling system is a professional urban special refueling tank truck tailored for diversified fuel transportation and mobile refueling scenarios. Powered by a reliable MC07.34-30 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this fuel tanker delivers a maximum power output of 340 HP, bringing robust and stable power performance for daily operation.
Matched with a 10-forward and 2-reverse speed gearbox and a reinforced diaphragm clutch, the truck features flexible gear shifting, precise control and excellent driving stability. It adapts seamlessly to all kinds of complex road conditions, perfectly meeting long-distance and daily fuel transportation demands in urban and suburban areas.
This HOWO fuel tanker boasts a standard actual tank volume of 20,000 liters, with outstanding tank body durability and safety. The tank is constructed of high-quality Q345 carbon steel with a wall thickness of no less than 4mm, ensuring high strength, corrosion resistance and long service life. Equipped with full sets of renowned Chinese brand fuel pumps, valves and piping systems, as well as a complete fuel distribution device, the truck realizes efficient, stable and safe fuel suction, transmission and refueling operations.

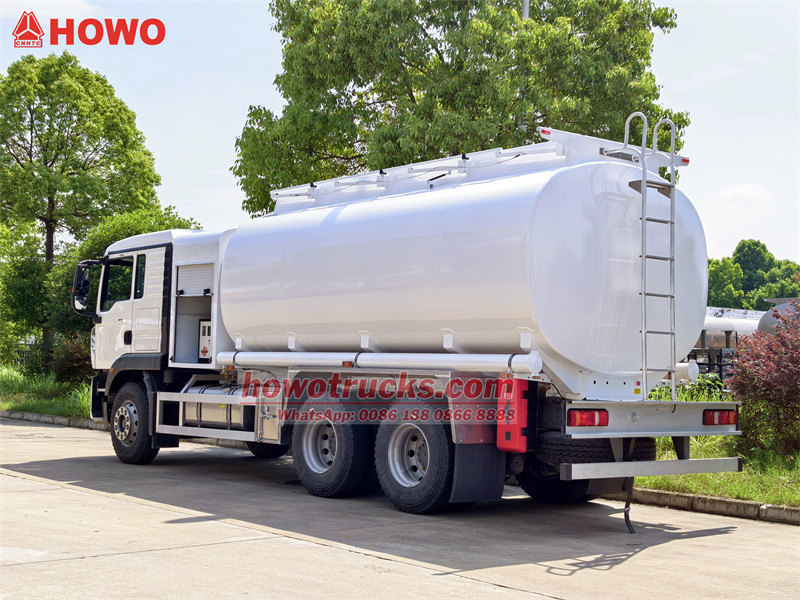

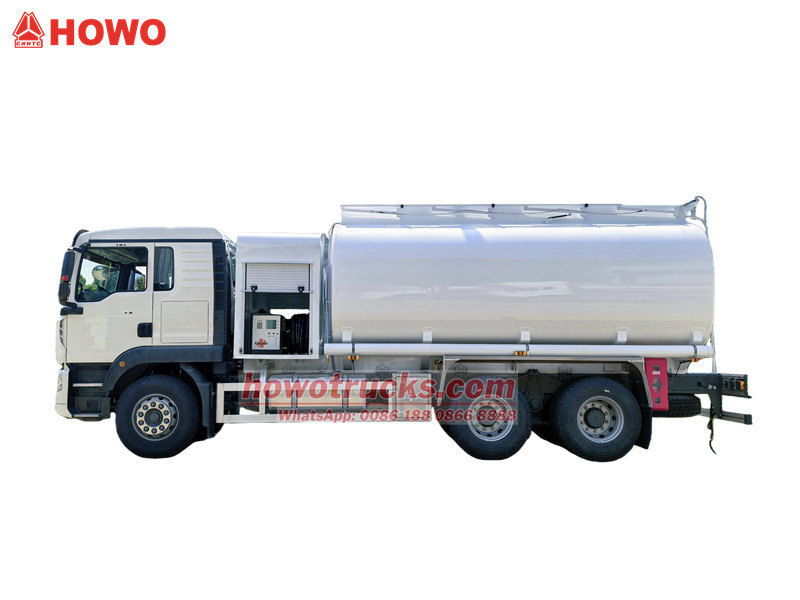

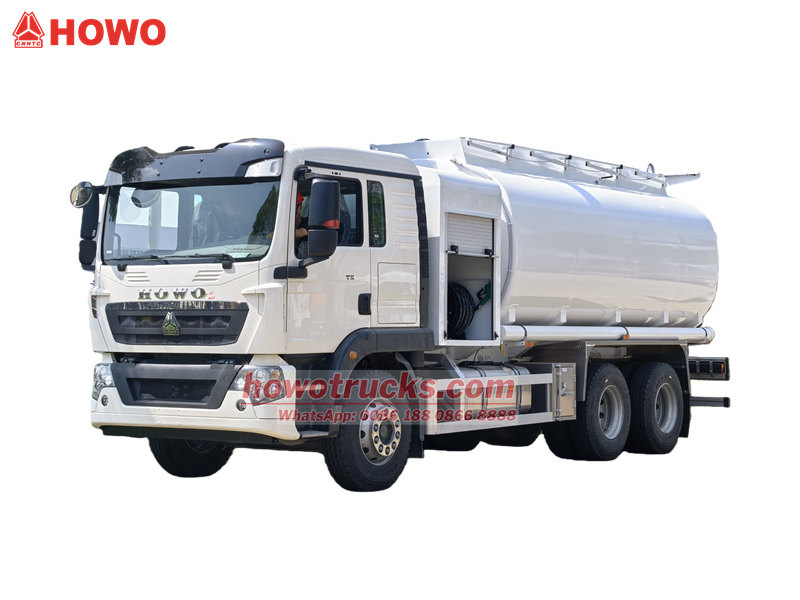

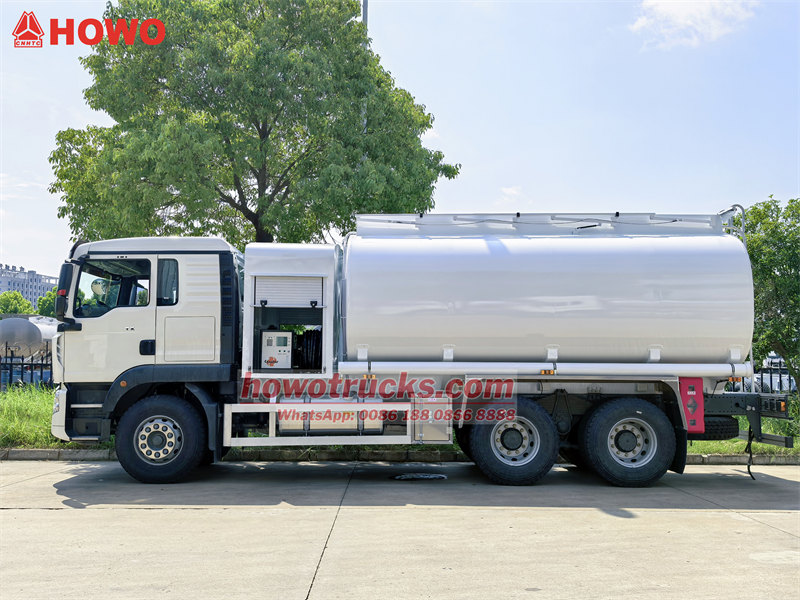

*HOWO TX 20000L Fuel Tank Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Sinotruk Howo truck chassis,6x4, 6x6 model, MC model with 300HP,340HP,380HP,400HP... Euro 2,3
▶ Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.
▶ Professional Compartment：The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.
✦ Ⅱ.Product Parameter For HOWO TX Fuel Tank Truck « « «
|
HOWO TX 4x2 Fuel Tank Truck |
||
|
Drive system |
4X2 |
|
|
Chassis |
HOWO TX |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
10300*2350*2950 |
|
Wheel base (mm) |
4600+1370 |
|
|
Overhang (front/rear) (mm) |
1380/1820 |
|
|
Approach/Departure angle(°) |
22/17 |
|
|
Weight in KGS |
Curb Weight |
14500 |
|
GVW. |
25000 |
|
|
Max. driving speed(km/h) |
105 |
|
|
Engine |
Model |
MC07.34-30 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
340 HP |
|
|
Emission standard |
Euro 2 |
|
|
Gearbox |
HW19710, 10 forwards & 2 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
100L |
|
|
Tire |
12.00R20 10 pcs+1 spare tire |
|
|
Upper Body |
||
|
Fact cubage |
20000Liters |
|
|
Protective material |
Q345 carbon steel |
|
|
Tank material |
<5mm> carbon steel |
|
|
Equipment |

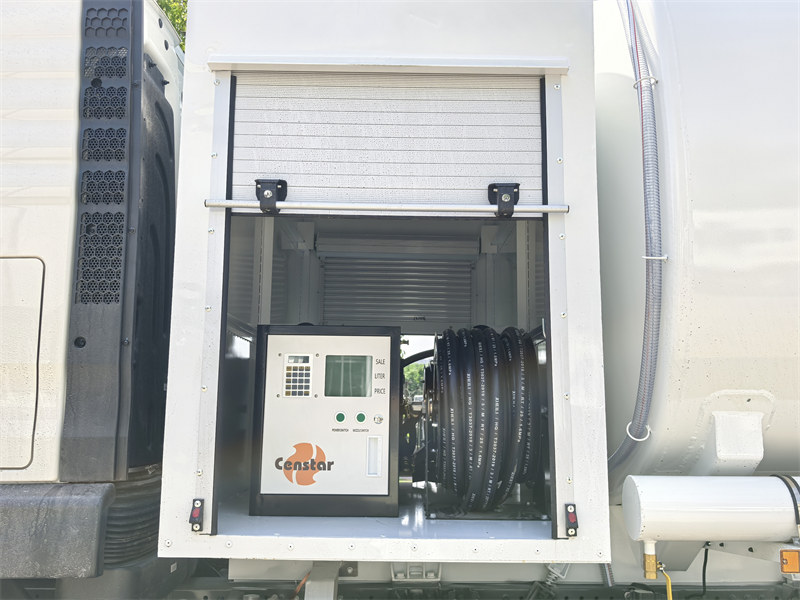

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser |
|
✦ Ⅲ. Advantage For HOWO Fuel Tank Truck « « «
Power and Heavy-Duty Performance Advantages:
♦ Powerful Engine for Complex Working Conditions: Equipped with an MC07.34-30 engine, delivering ample 340 horsepower, providing strong starting and climbing capabilities even on muddy, steep, and unpaved roads in regions like Africa.
♦ Compliant Heavy-Duty and Stable Load Bearing: With a gross vehicle weight of 25 tons and a tank volume of 20,000 liters, featuring a Q345 carbon steel tank body and 5mm thickened tank walls, it boasts strong load-bearing capacity and structural stability, meeting the needs of large-scale oil transfer.
♦ Highly Reliable Transmission System: The HW19710 10-speed gearbox with a reinforced clutch offers high transmission efficiency, durability, and a low failure rate under frequent start-stop and heavy-duty conditions.
Tank Body and Operational Safety Advantages:
♦ Safe and Compliant Tank Design: Constructed with Q345 carbon steel and 5mm thickened tank walls, offering excellent impact and corrosion resistance. Suitable for transporting various fuels such as diesel and gasoline, and can be configured with multiple compartments for oil separation.
♦ Comprehensive Safety Features: Equipped with a speed limiter (maximum speed limit 95km/h), dedicated oil pump, valve pipelines, and refueling nozzles, ensuring safe and controllable operation. A non-slip ladder on the top of the tank facilitates daily inspection and maintenance.
♦ Meets Hazardous Goods Transportation Industry Standards: The tank material, sealing structure, and protective design all meet the regulations for hazardous chemical transportation, making it suitable for oil transportation operations in oil fields, mines, construction sites, and other similar environments.

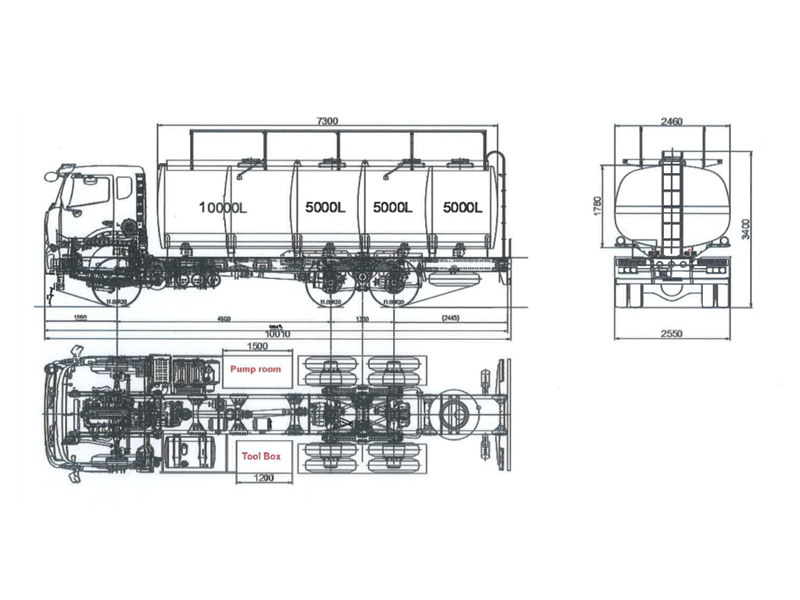

✦ Ⅳ.Fuel Tank Body Structure « « «
♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.
♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.
♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

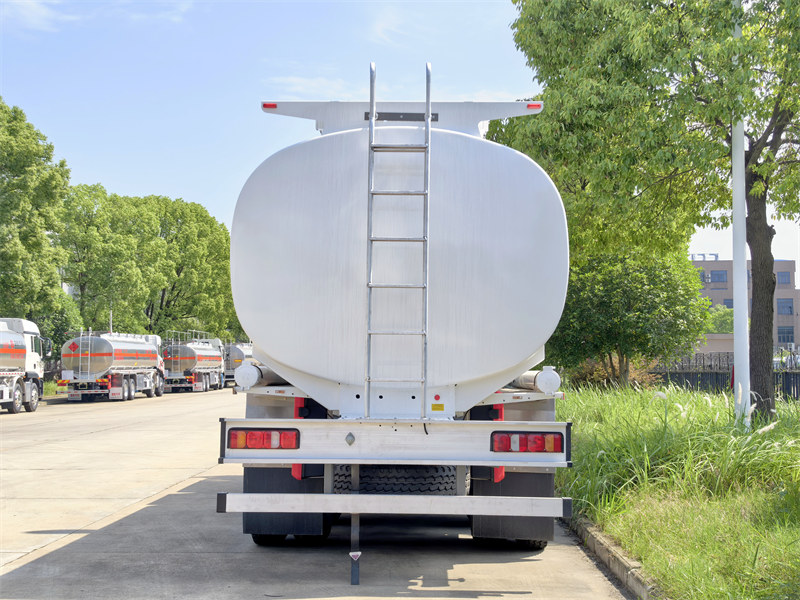

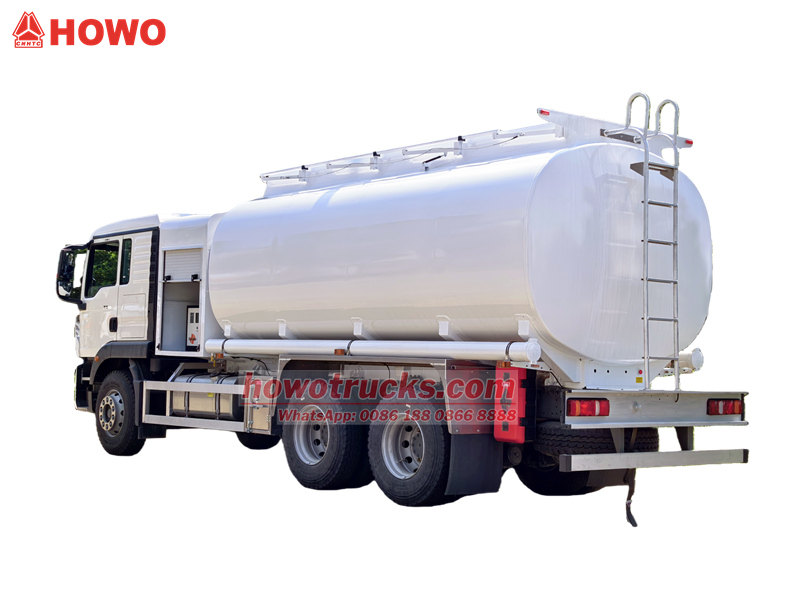

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.
♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.
♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.
♦ The tank opening is a φ500 diameter hole for maintenance and repair.
✦ Ⅴ.Fuel Pump System for Howo Fuel Tank Truck « « «
♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.
♦ The oil pump is connected to the chassis via a pump mounting bracket.
 |
 |
♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.
♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.
|

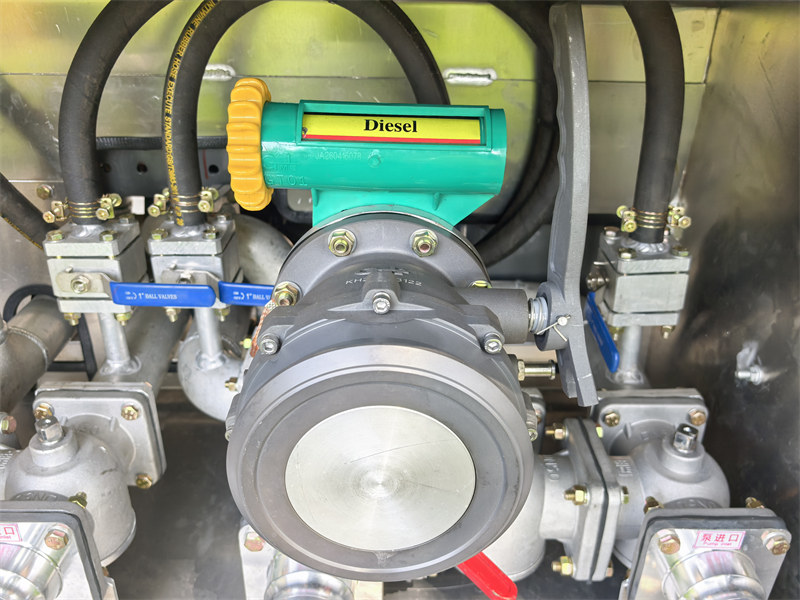

Circular Arc Gear Oil Pump |
|
|
Model |
80YHCB-80 |
|
Pressure |
0.7 MPa |
|
Flow |
80 m³/h |
|
Power Supplied |
11 KW |
|
Rotational Speed |
1170 r/min |
✦ Ⅵ.Howo Fuel Truck Safety Protection Devices « « «
♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

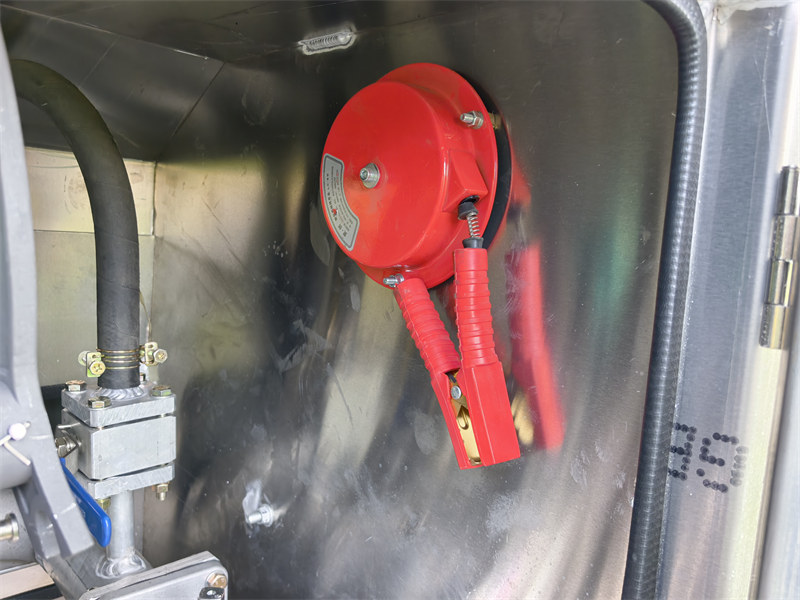

♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.
♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

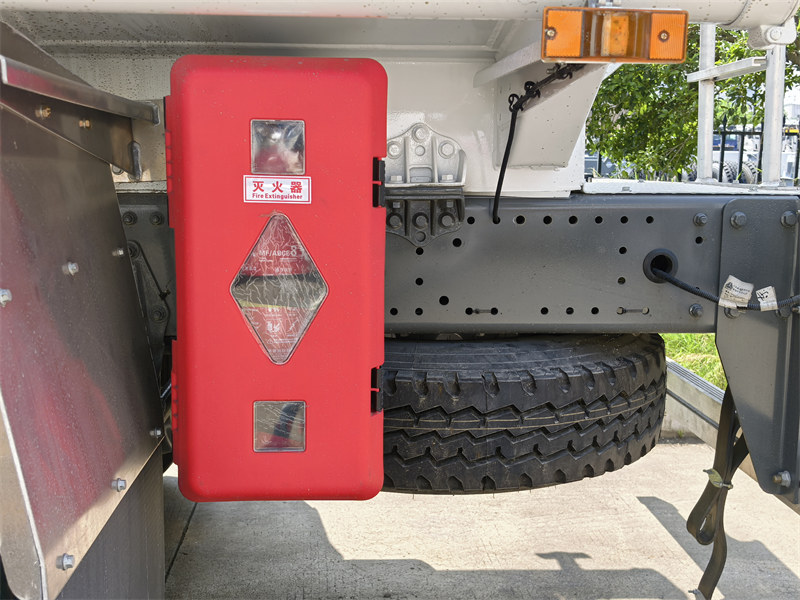

♦ Fire extinguishers are provided on both sides of the oil tank.

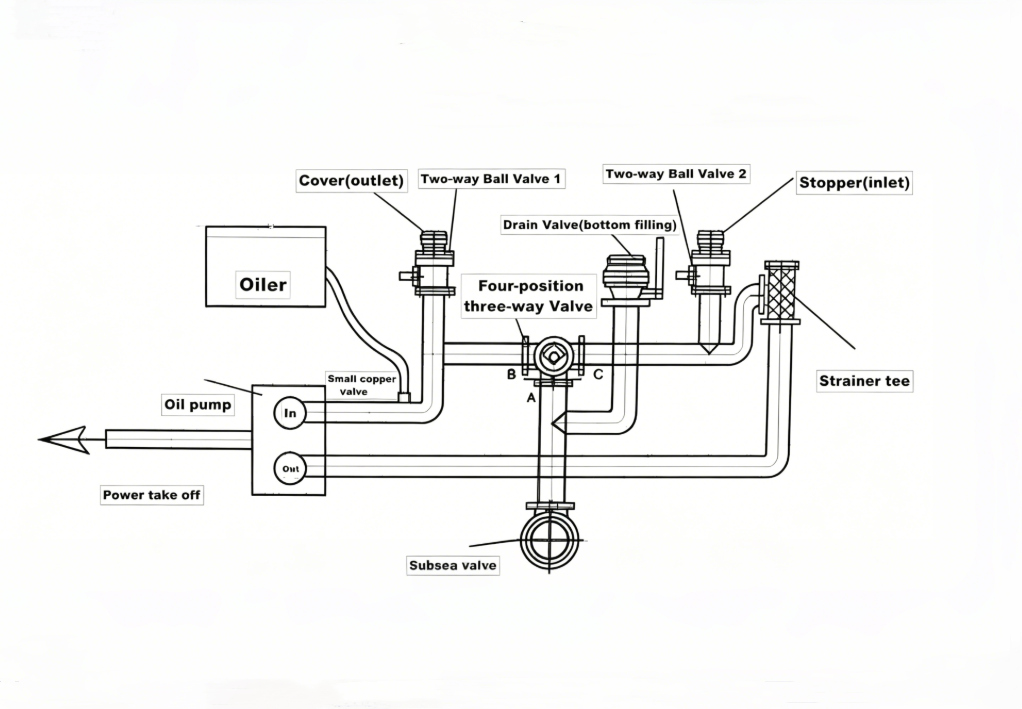

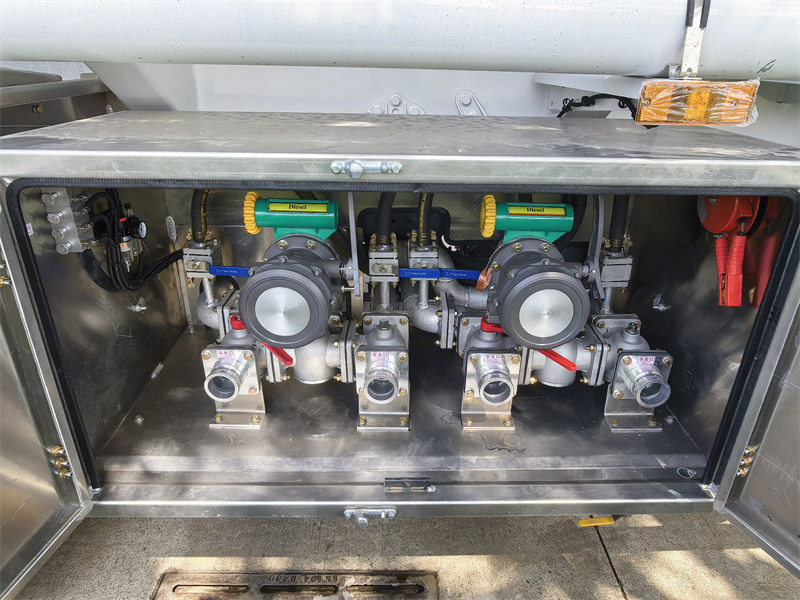

✦ Ⅶ. HOWO Fuel Bowser Truck Pipeline Operation System « « «
♦ Pump out:
(1) Turn the four-position three-way ball valve mark point to the direction of forward B);
Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other
(2) Open two-way Ball Valve 1to pump oil;
(3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be achieved refueling refueling machine.
♦ Pump in:
(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;
(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.
(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
